Platform Integrity Attestation

Platform attestation is the cornerstone use case for ISecL. Platform attestation involves taking measurements of system components during system boot, and then cryptographically verifying that the actual measurements taken matched a set of expected or approved values, ensuring that the measured components were in an acceptable or "trusted" state at the time of the last system boot.

ISecL leverages the Trusted Compute Group specification for a trusted boot process, extending measurements of platform components to registers in a Trusted Platform Module, and securely generating quotes of those measurements from the TPM for remote comparison to expected values (attestation).

This section includes basic REST API examples for these workflows. See the Javadoc for more detailed documentation on REST APIs supported by ISecL.

Typical workflows in the datacenter might include:

  • Creating a set of acceptable flavors for attestation with automatic flavor matching that represent the known-good measurements for acceptable BIOS and OS versions in the datacenter

  • Registering hosts for attestation with automatic flavor matching

  • Upgrading hosts in the datacenter to a new BIOS or OS version

  • Removing hosts from the Verification Service

  • Removing flavors

  • Provisioning asset tags to hosts

  • Invalidating asset tags

  • Retrieving current attestation reports

  • Retrieving current host state information

  • Remediating an untrusted attestation

Host Registration

Registration creates a host record with connectivity details and other host information in the Verification Service database. This host record will be used by the Verification Service to retrieve TPM attestation quotes from the Trust Agent to generate an attestation report.

Trust Agent

Registration via Trust Agent Command Line

The Trust Agent can register the host with a Verification Service by running the following command:

tagent setup create-host
Note

The following environment variables must be exported for this command:

HVS_URL=https://<hvs_IP/hostname>:8443/hvs/v2
CURRENT_IP=<trustagent_IP>
BEARER_TOKEN=<authentication token>
Note

Because VMWare ESXi hosts do not use a Trust Agent, this method is not applicable for registration of ESXi hosts.

Registration via Verification Service API

Any Trust Agent or VMware ESXi host/cluster can be registered using a Verification Service API request. Registration can be performed with or without a set of existing Flavors. Rules for Flavor matching can be set by using the Flavor Group in the request; if no Flavor Group is specified, the automatic Flavor Group will be used. See the Flavor Management section for additional details on Flavors, Flavor Groups, and Flavor matching.

Sample Call

POST https://verification.service.com:8443/hvs/v2/hosts
Authorization: Bearer <token>

{
    "host_name": "<hostname of host to be registered>",
    "connection_string": "<connection string>",
    "flavorgroup_name" : "",
    "description" : "<description>"
}

Requires the permission hosts:create

Sample Call for ESXi Cluster Registration

POST https://verification.service.com:8443/hvs/v2/hosts
Authorization: Bearer <token>

{
    " esxi_clusters": [
       {
          "connection_string": "<password>",
          "cluster_name": "<cluster name>"
       }
    ]
 }

Requires the permission esxi_clusters:create

Flavor Creation for Automatic Flavor Matching

Flavor creation is the process of adding one or more sets of acceptable measurements to the Verification Service database. These measurements correspond to specific system components, and are used as the basis of comparison to generate trust attestations.

Flavors can be created manually, or can be imported from an example host.

Flavors are automatically matched to hosts based on the Flavorgroup used by the host and the Flavors, and the Flavor Match Policies of the Flavorgroup. The ISecL Verification Service creates a default Flavorgroups during installation called "automatic" This Flavorgroup is configured to be used as a pool of all acceptable Flavors in a given environment, and will automatically match the appropriate Flavor parts to the correct host. This Flavorgroup is used by default and is expected to be useful for the majority of deployments. If no Flavorgroup is specified when creating a Flavor, it will be placed in the "automatic" Flavorgroup.

Flavors are also divided into Flavor parts, which correspond to the PLATFORM, OS, HOST_UNIQUE, SOFTWARE, and ASSET_TAG measurements. These can be created and maintained separately (so that users can manage acceptable OS and BIOS versions, rather than entire host configurations). By default, if not specified, the Verification Service will import Flavors as separate Flavor parts, as appropriate for the host type.

By using individual Flavor parts, individual versions of OS or PLATFORM measurements can be managed and automatically mapped. Whenever a host changes states (Untrusted, Connected, etc.) the Verification Service will attempt to match appropriate Flavors to that host. If a Flavor is removed or added, all appropriate hosts will be updated to use the new Flavor, or to no longer use the deleted Flavor. Hosts that are currently using a BIOS where that BIOS versions’ PLATFORM Flavor was deleted will now appear Untrusted, for example. This can be used to easily flag as Untrusted hosts that are using software that has been End-Of-Lifed, or perhaps an OS kernel with a known security vulnerability.

Note

See the Flavor Management section for additional details on how flavors can be managed, and how the Flavor matching engine works. The sample workflow provided here is intended to be an introduction only.

Importing a Flavor from a Sample Host

POST https://verification.service.com:8443/hvs/v2/flavors
Authorization: Bearer <token>

{
    "connection_string": "<connection string>",
    "partial_flavor_types": ["PLATFORM", "OS", "HOST_UNIQUE"],
    "flavorgroup_names": []
}

Requires the permission flavors:create

Note

The HOST_UNIQUE Flavor parts, used by Red Hat Enterprise Linux and VMWare ESXi host types, MUST be created for each registered host of that type, and should in general be imported from that host. This means that importing the HOST_UNIQUE flavor should always be done for each host registered.

To import ONLY the HOST_UNIQUE Flavor part from a host:

POST https://verification.service.com:8443/hvs/v2/flavors
Authorization: Bearer <token>

{
    "connection_string": "<connection string>",
    "partial_flavor_types": ["HOST_UNIQUE"],
    flavorgroup_names": []
}

Requires the permission flavors:create

Creating a Flavor Manually

Flavors can be directly created (rather than importing from a sample host) if the required information is known. If no Flavorgroup is specified, the Flavor will be placed in the automatic group. Note that the label is a required field and must be unique.

POST https://verification.service.com:8443/hvs/v2/flavors
Authorization: Bearer <token>

{
    "connection_string": "",
    "flavor_collection": {
        "flavors": [
            {
                "meta": {
                    "vendor": "INTEL",
                    "description": {
                        "flavor_part": "PLATFORM",
                        "label": "Intel Corporation_SE5C610.86B.01.01.1008.031920151331_TPM2.0",
                        "bios_name": "Intel Corporation",
                        "bios_version": "SE5C620.86B.00.01.0004.071220170215",
                        "tpm_version": "2.0"
                    }
                },
                "hardware": {
                    "processor_info": "…",
                    "processor_flags": "…",
                    "feature": {
                        "tpm": {
                            "enabled": true,
                            "pcr_banks": [
                                "SHA1",
                                "SHA256"
                            ]
                        },
                        "txt": {
                            "enabled": true
                        }
                    }
                },
                "pcrs": {
                    "SHA1": {
                        "pcr_0": {
                            "value": "d2ed125942726641a7260c4f92beb67d531a0def"
                        },
                        "pcr_17": {
                            "value": "1ec12004b371e3afd43d04155abde7476a3794fa",
                            "event": ...
                        }

Requires the permission flavors:create

Creating the Default SOFTWARE Flavor (Linux Only)

As part of the new Application Integrity feature added in Intel® SecL-DC version 1.5, a new default SOFTWARE Flavor part is provided so that the Linux Trust Agent itself can be measured and included in the attestation process. The default SOFTWARE Flavor includes a manifest for the static files and folders in the Trust Agent. The manifest is automatically deployed to each Linux Trust Agent during the provisioning step.

Note

The Linux Trust Agent must be rebooted after the Provisioning step is completed (typically Provisioning happens during installation, based on whether all of the required variables are set in the trustagent.env file). Rebooting allows the default SOFTWARE Flavor manifest to be measured and extended to the TPM PCRs. If the reboot is not performed, the system will require a SOFTWARE Flavor, but the measurements will not exist, and the system will appear Untrusted. If an un-rebooted host is used to create the SOFTWARE Flavor, the Flavor will be created based on measurements that do not exist, and will fail.

The SOFTWARE Flavor part should be created separately from the other Flavor parts. Only one default SOFTWARE Flavor needs to be created for each version of the Linux Trust Agent. If the SOFTWARE Flavor for the same Trust Agent version is imported multiple times, subsequent imports will fail as the Flavor already exists.

To import the SOFTWARE Flavor part from a host:

POST https://verification.service.com:8443/hvs/v2/flavors
Authorization: Bearer <token>

{
    "connection_string": "<connection string>",
    "partial_flavor_types": ["SOFTWARE"],
    flavorgroup_names": []
}

Requires the permission flavors:create

Creating and Provisioning Asset Tags

Asset Tags represent a set of key/value pairs that can be associated with a host in hardware. This enables usages around restricting workflows to specific hosts based on tags, which could include location information, compliance tags, etc.

ISecL creates Asset Tags by creating a certificate containing the list of key/value pairs to be tagged to the host, with the host’s hardware UUID as the certificate subject. A hash of this certificate is then written to an NVRAM index in the host’s TPM. This value is included in TPM quotes, and can be attested using an Asset Tag flavor that matches up the expected value and the actual key/value pairs.

Creating Asset Tag Certificates

Asset Tag certificates can be created with a single REST API call, with any number of key/value pairs. Note that one certificate must be created for each host to be tagged, even if they will all be tagged with identical key/value pairs.

POST https://verification.service.com:8443/hvs/v2/tag-certificates
Authorization: Bearer <token>

{
    "hardware_uuid": "<hardware UUID of host to be tagged>",
    "selection_content": [
        {
            "name": "<key>",
            "value": "<value>"
        },
        {
            "name": "<key>",
            "value": "<value>"
        },
        {
            "name": "<key>",
            "value": "<value>"
        }
    ]
}

Deploying Asset Tags

Red Hat Enterprise Linux

Asset Tags can be provisioned to a Windows or RHEL host via a REST API request on the Verification Service that will in turn make a request to the Trust Agent on the host to be tagged.

POST https://verification.service.com:8443/hvs/v2/rpc/deploy-tag-certificate
Authorization: Bearer <token>

{
    "certificate_id": "<certificate ID>"
}

VMWare

Since VMWare ESXi hosts do not use a Trust Agent, the process for writing Asset Tags to a VMWare host is different from RHEL. A new interface has been added to ESXi via a new esxcli command starting in vSphere 6.5 Update 2 that allows the Asset Tag information to be written to the TPM via a command-line command. The older process is also described below.

The high-level workflow for using Asset Tags with VMWare ESXi is:

  1. Create the Asset Tag Certificate for the host.
  2. Calculate the Certificate Hash value.
  3. Provision the Certificate Hash value to the host TPM and reboot
  4. Create the Asset Tag Flavor.
Note

Asset Tag is currently not supported for VMWare hosts using TPM 2.0.

Calculate the Certificate Hash Value

Only the hash value of the Asset Tag Certificate can be provisioned to the TPM, due to the low size of the NVRAM.

  1. Retrieve the Asset Tag Certificate. The Asset Tag Certificate can be retrieved either from the response when the Asset Tag certificate is created, or by using a GET API request to retrieve the certificate:

    GET https://verification.service.com:8443/hvs/v2/tag-certificates?subjectEqualTo=<HardwareUUID>
Authorization: Bearer <token>

  2. Copy only the certificate value (this will be the certificate in encoded format) and write the data to a file on a Linux system. Remove any line breaks and save the file. Assuming the filename used is tag-cert use the following to generate the correct hash:

    cat tag-cert | base64 --decode | openssl dgst -sha1 | awk -F" " '{print $2}'

    This hash value will be what is actually written to the TPM NVRAM.

Provision the Certificate Hash to the Host TPM

Due to a new feature added in vSphere 6.5 Update 2, the process for provisioning Asset Tags on VMWare ESXi hosts has been significantly improved. Both the old and new process for provisioning Asset Tags is documented below. Intel recommends using vSphere 6.5 Update 2 or later due to the significant difference in the process.

vSphere 6.5 Update 2 or Later

Starting in ESXi 6.5u2, you can now use SSH to write Asset Tags directly with no need for TPM clears, reboots, PXE, or BIOS access. SSH to the ESXi host using root credentials. Then use the command:

esxcli hardware tpm tag set -d <hash>

You can use the following command to verify that the tag was written:

esxcli hardware tpm tag get

Reboot the host. After rebooting, the TPM PCR 22 will have the measured value of the hash.

vSphere 6.5 Update 1 or Older

There is no direct interface from VMWare vCenter or ESXi previous to vSphere 6.5 Update 2 that will write the Tag information to the host TPM.

Writing Asset Tag information to a TPM requires TPM ownership; VMWare ESXi takes TPM ownership with a secret password at boot time. This means that the process for writing Asset Tags to a VMWare host requires:

  1. Clear TPM ownership.

    • This can be done via the system BIOS, or using One Touch Activation through the IPMI interface (if enabled by the server OEM).

  2. Reactivate TPM/TXT.

  3. This can be done via the system BIOS, or using One Touch Activation through the IPMI interface (if enabled by the server OEM).

  4. Booting to an OS that has the ability to issue TPM commands

  5. Typically the provisioning OS used is Ubuntu or RHEL, booted temporarily using PXE.

  6. Writing the Tag information

  7. The TPM index 0x40000010 must be defined, and the hash of the Asset Tag certificate must be written to that index.

  8. Clear TPM ownership.

  9. This can be done via the system BIOS, or using One Touch Activation through the IPMI interface (if enabled by the server OEM).

  10. Reactivate TPM/TXT

  11. This can be done via the system BIOS, or using One Touch Activation through the IPMI interface (if enabled by the server OEM).

  12. Boot back to VMWare ESXi.

When the system is rebooted to ESXi, the Trusted Boot process will extend the value to PCR22, and this value can be used during attestation.

Creating the Asset Tag Flavor (VMWare ESXi Only)

While for RHEL and Windows hosts the Asset Tag Flavor is automatically created during the Tag Provisioning step, for VMWare ESXi hosts the Flavor must be created by importing it from the host after the Tag has been provisioned.

POST https://verification.service.com:8443/hvs/v2/flavors
Authorization: Bearer <token>

{
    "connection_string": "<VMWare vCenter connection string>",
    "partial_flavor_types": ["ASSET_TAG"]
}

Once the Asset Tag Flavor is imported, the host can be attested including Asset Tags as normal.

Retrieving Current Attestation Reports

GET https://verification.service.com:8443/hvs/v2/reports?latestPerHost=true
Authorization: Bearer <token>

Retrieving Current Host State Information

GET https://verification.service.com:8443/hvs/v2/host-status?latestPerHost=true
Authorization: Bearer <token>

Upgrading Hosts in the Datacenter to a New BIOS or OS Version

Software and firmware updates are a common occurrence in the datacenter. Automatic Flavor matching makes this process relatively simple:

  1. Create a new Flavor for the new version. This may be manually created or imported directly from a sample host that has already received the upgrade. Be sure to create new Flavors for each TPM version represented in your datacenter.

    POST https://verification.service.com:8443/hvs/v2/flavors
Authorization: Bearer <token>

{
    "connection_string": "<connection string>",
    "partial_flavor_types": ["PLATFORM", "OS", "HOST_UNIQUE"],
    flavorgroup_names": []
}

  2. Update the hosts to the new software or firmware version as normal. On the next attestation attempt, the Verification Service will automatically match the updated hosts to the new Flavor.

  3. (Optional) If desired, delete the Flavor for the older version after the update is completed. This will cause any hosts that are still using the old version to attest as Untrusted. Which can easily flag hosts that missed the upgrade for remediation.

    DELETE https://verification.service.com:8443/hvs/v2/flavors/<flavorId>
Authorization: Bearer <token>

Removing Hosts From the Verification Service

Hosts can be deleted at any time. Reports for that host will remain in the Verification Service database for audit purposes.

DELETE https://verification.service.com:8443/hvs/v2/hosts/<hostId>
Authorization: Bearer <token>

The hostId can be retrieved either at the time the host is created, or by searching hosts using the host’s hostname.

Removing Flavors

Flavors can be deleted; this will cause any hosts that match the deleted Flavor to evaluate as Untrusted. This can be done if, for example, an old BIOS version needs to be retired and should no longer exist in the datacenter. By deleting the PLATFORM Flavor, hosts with the old BIOS version will attest as Untrusted, flagging them for easy remediation.

DELETE https://verification.service.com:8443/hvs/v2/flavors/<flavorId>

Invalidating Asset Tags

Asset Tags can be deleted in two ways.

Deleting the ASSET_TAG Flavor part will retain the Asset Tag certificate in the database, but will cause the host using this Tag to no longer use the Asset Tag for attestation (the Tag result will be disregarded and no tags will be exposed in the attestation Reports).

DELETE https://verification.service.com:8443/hvs/v2/flavors/<assetTagflavorId>
Authorization: Bearer <token>

Deleting the actual Asset Tag certificate will remove the certificate from the database, but will not actually affect attestation results (the authority for attestation results is the Flavor).

DELETE https://verification.service.com:8443/hvs/v2/tag-certificates/<assetTagCertificateId>
Authorization: Bearer <token>

Remediating an Untrusted attestation

Hosts can become Untrusted for a wide variety of causes. The first clue to finding the root cause for an Untrusted attestation is the attestation Report itself – the Report will show Trust results for the PLATFORM, OS, HOST_UNIQUE, and ASSET_TAG Flavor parts individually, along with the OVERALL trust. If the Report shows that the PLATFORM Flavor part trust is “false” for example, it means that the PLATFORM measurements did not match any Flavors in the host’s Flavorgroup.

Untrusted attestation Reports will contain faults that describe the specific attestation rules that were not satisfied. This often shows enough information to describe the cause of the Untrusted status. A fault like RequiredButNotDefined means that a Flavor part is required by the Flavorgroup policy, but no Flavors for that Flavor part exist in the Flavorgroup (for example, generally Flavorgroups should always require a PLATFORM Flavor part; if no PLATFORM Flavors are in the Flavorgroup, hosts in the Flavorgroup will attest with this fault).

Other faults include:

"PcrMatchesConstant" - describes a rule that evaluates whether a TPM PCR has a specific value

"PcrEventLogIntegrity" - the module event log is replayed during attestation to verify that the resulting measurement matches the actual value in the module PCR. If the replay does not match, it indicates the event log cannot itself be trusted.

"AikCertificateTrusted" – This rule evaluates whether the TPM quote was signed by the TPM associated with this host. As part of host registration, the public half of the Attestation Identity Keypair is captured, and this public key is used to verify the signature on TPM quotes from that host.

See the Appendix for a full list of the rules evaluated during Attestation.

The Flavor matching engine will use the most-similar Flavor for the attestation Report in the case of an Untrusted result.

The fault will explain in a general sense what rule the host attestation violated. To remediate, the rule will need to be satisfied. This could mean creating a new Flavor to match the actual observed values, or it could mean that the host has been tampered with and should have its BIOS flashed or OS reloaded.

Attestation Reporting

Attestation results are delivered in the form of Host Reports. A Report can delivered in several different formats, which can change the type of data returned.

The preferred format for Host Reports is a SAML attestation. A SAML-formatted report includes a chain or signatures that provides auditability for the Report. The SAML attestation will include the base trust status of the host, as well as the overall trust for each individual Flavor used in the attestation. The Report will also contain host information, such as TPM version, Operating System name and version, BIOS version, etc. The SAML Report will not, however, contain individual measurements and comparisons of values. This format of the Report is ideal for securely communicating the trust status of a host and for audit history.

Attestation Reports can also be retrieved in json or xml format. These formats will not include the signature chain provided in the SAML format, but will contain the actual measurement values and expected Flavor values used for comparison. These reports are typically used for remediation, because they will show specifically why a given Host attested as Untrusted.

The format for a Report is determined by the Accept header in the request.

Attestations are automatically generated in the Verification Service by a repeating scheduled background process. This process looks for Attestation Reports that are close to expiration, and triggers a new Attestation Report. By default, Attestation Reports are valid for 90 minutes, and the background refresh process will trigger a new attestation when a Report is found to be within 3 minutes of expiration.

A user can either retrieve the most recent currently valid Attestation Report for a given host, or may trigger a new Attestation Report to be generated. Typically, it is best to retrieve an existing Report for performance reasons. Generating a new Attestation Report requires the generation of a new TPM quote from the TPM of the host being attested; TPM performance differs greatly between vendors, and a quote can take anywhere between 2-7 seconds to generate.

Sample Call – Generating a New Attestation Report

POST https://verification.service.com:8443/hvs/v2/reports
Authorization: Bearer <token>

{
    "host_name":"host-1"
}

Requires the permission reports:create

Sample Call – Retrieving an Existing Attestation Report

GET https://verification.service.com:8443/hvs/v2/reports?hostName=HostName.server.com
Authorization: Bearer <token>

Below are the supported criteria options in order of precedence. If no host filter criteria is specified, then results are returned for all active hosts.

  • id - unique UUID of the report entry in the database

  • hostId - unique UUID of the host entry in the database

  • hostName - name of the host

  • hostHardwareId - hardware UUID of the host

  • hostStatus - current state of the host, which supports the following options:

    • CONNECTED - host is in connected state
    • QUEUE - host is in queue to be processed
    • CONNECTION_FAILURE - connection failure
    • UNAUTHORIZED - unauthorized
    • AIK_NOT_PROVISIONED - AIK certificate is not provisioned
    • EC_NOT_PRESENT - endorsement certificate is not present
    • MEASURED_LAUNCH_FAILURE - TXT measured launch failure
    • TPM_OWNERSHIP_FAILURE - TPM ownership failureTPM_NOT_PRESENT - TPM is not present
    • UNSUPPORTED_TPM - unsupported TPM version
    • UNKNOWN - unknown host state

Requires the permissions reports:search

Other search criteria may also be used. By default, the most recent currently valid attestation is returned. However, different query parameters can be used to retrieve all attestations for a specific host over the last 30 days, for example.

Integration

Intel® SecL can be integrated with scheduler services (or potentially other services) to provide additional security controls. For example, by integrating Intel® SecL with the OpenStack scheduler service, the OpenStack placement service can incorporate the Intel® SecL security attributes into VM scheduling.

The Integration Hub

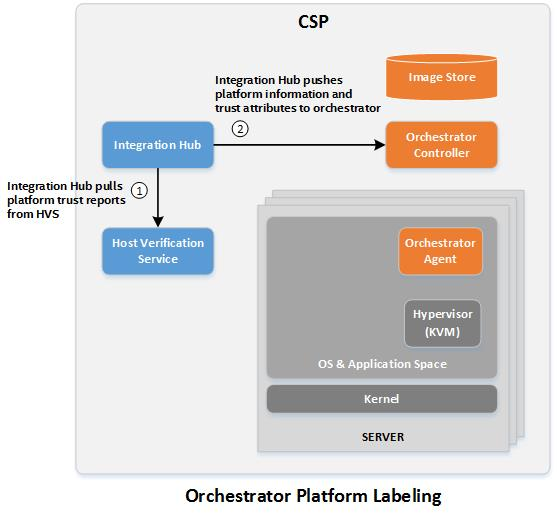

The Integration Hub acts as the integration point between the Verification Service and a third party service. The primary purpose of the Hub is to collect and maintain up-to-date attestation information, and to “push” that information to the external service. The secondary purpose is to allow for multitenancy, the Verification Service does not allow for permissions to be applied for specific hosts, so a user with the “attestation” role can access all attestations for all hosts. By using separate Integration Hub instances for each Cloud environment (or "tenant"), the Hub will push attestations only for the associated hosts to a given tenant’s integration endpoints.

For example, Tenant A is using hosts 1-10 for an OpenStack environment. Tenant B is using hosts 11-15 for a Kubernetes environment. Two Hub instances must be configured, one managing tenant A's OpenStack cluster and a second instance managing Tenant B's Kubernetes environment. Each integration Hub will automatically retrieve the list of hosts used by its configured orchestration endpoint, retrieve the attestation reports only for those hosts, and push the attestation attribute information to each configured endpoint. Neither tenant will have access to the Verification Service, and will not be able to see attestation or other host details regarding infrastructure used by other tenants.

Different integration endpoints can be added to the Integration Hub through a plugin architecture. By default, the Integration Hub includes plugins for OpenStack and Kubernetes (Kubernetes deployments require the additional installation of two Intel® SecL-DC Custom Resource Definitions on the Kube Control Plane).

integration

Integration with OpenStack

Starting in the Rocky release, OpenStack can now use “Traits” to provide qualitative data about Nova Compute hosts, and to establish Trait requirements for VM instances. The updated scheduler will place VMs requiring a given Trait on Nova Compute nodes that meet the Trait requirements.

Intel SecL-DC uses the Integration Hub to continually push platform integrity and Asset Tag information to the OpenStack Traits resources. This means the OpenStack scheduler natively supports workload scheduling incorporating Intel SecL-DC security attributes, including attestation report Trust status and Asset Tags. The OpenStack Placement Service will automatically attempt to place images with Trait requirements on compute nodes that have those Traits.

Note

This control only applies to instances launched using the OpenStack scheduler, and the Traits functions will not affect manually-launched instances where a specific Compute Node is defined (since this does not use the scheduler at all). Intel SecL-DC uses existing OpenStack interfaces and does not modify OpenStack code. The datacenter owner or OpenStack administrator is responsible for the security of the OpenStack workload scheduling process in general, and Intel recommends following published OpenStack security best practices.

Prerequisites

  • Verification Service must be installed and running.

  • OpenStack* Rocky (or later) Nova, Glance, Horizon, and Keystone services must be installed and running

  • The Integration Hub must be installed and running.

Setting Image Traits

Image Traits define the policy for which Traits are required for that Image to be launched on a Nova Compute node. By setting these Traits to “required,” the OpenStack scheduler will require these same Traits to be present on a Nova Compute node in order to launch instances of the image.

To set the Image Traits for Intel SecL-DC, a specific naming convention is used. This naming convention will match the Traits that the Integration Hub will automatically push to OpenStack. Two types of Traits are currently supported – one Trait is used to require that the Compute Node be Trusted in the Attestation Report, and the other Trait is used to require specific Asset Tag key/value pairs.

To require a Trusted Attestation Report:

CUSTOM_ISECL_TRUSTED=required

The naming convention for Asset Tags is more flexible, and any number of these Traits can be used simultaneously.

Note

All of the Traits must be present on the Compute Node for the scheduler to allow instances to land, so be sure not to set mutually exclusive Asset Tag values.

CUSTOM_ISECL_AT_TAG_<key>_<value>=required`

For example, to define a Trait that will require an Asset Tag where State = CA use the following:

CUSTOM_ISECL_AT_TAG_STATE_CA= required

These Traits can be set using CLI commands for OpenStack Glance:

openstack image set --property trait:CUSTOM_ISECL_AT_STATE__CA=required <image_name>

openstack image set --property trait:CUSTOM_ISECL_TRUSTED=required <image_name>

To remove a Trait so that it is no longer required for an Image:

openstack image unset --property trait:CUSTOM_ISECL_AT_STATE__CA <image_name>

openstack image unset --property trait:CUSTOM_ISECL_TRUSTED <image_name>

Configuring the Integration Hub for Use with OpenStack

The Integration Hub must be configured with the API URLs and credentials for the OpenStack instance it will integrate with. This can be done during installation using the "OPENSTACK_..." variables shown in the ihub.env answer file sample (see the Installing the Integration Hub section).

However, this configuration can also be performed after installation using CLI commands:

ihub setup openstack --endpoint-url="http://openstack:5000/v3" --endpoint-user="username" --endpoint-pass="password"

Restart the Integration Hub after configuring the endpoint. Note that "endpoint name" should be replaced with any user-friendly name for the OpenStack instance you would prefer.

Scheduling Instances

Once Trait requirements are set for Images and the Integration Hub is configured to push attributes to OpenStack, instances can be launched in OpenStack as normal. As long as the OpenStack Nova scheduler is used to schedule the workloads, only compliant Compute Nodes will be scheduled to run instances of controlled Images.

Note

This control only applies to instances launched using the OpenStack scheduler, and the Traits functions will not affect manually-launched instances where a specific Compute Node is defined (since this does not use the scheduler at all). Intel SecL-DC uses existing OpenStack interfaces and does not modify OpenStack code. The datacenter owner or OpenStack administrator is responsible for the security of the OpenStack workload scheduling process in general, and Intel recommends following published OpenStack security best practices.

Integration with Kubernetes

Through the use of Custom Resource Definitions for the Kubernetes Control Plane, Intel® Security Libraries can make Kubernetes aware of Intel® SecL security attributes and make them available for pod orchestration. In this way, a security-sensitive pod can be launched only on Trusted physical worker nodes, or on physical worker nodes that match specified Asset Tag values.

Note

This control only applies to pods launched using the Kubernetes scheduler, and these scheduling controls will not affect manually-launched instances where a specific worker node is defined (since this does not use the scheduler at all). Intel SecL-DC uses existing Kubernetes interfaces and does not modify Kubernetes code, using only the standard Custom Resource Definition mechanism to add this functionality to the Kubernetes Control Plane. The datacenter owner or Kubernetes administrator is responsible for the security of the Kubernetes workload scheduling process in general, and Intel recommends following published Kubernetes security best practices.

Prerequisites

  • Verification Service must be installed and running.

  • Kubernetes Control Plane Node must be installed and running

  • The supported Kubernetes versions are from 1.14.8-1.17.3 and the integration is validated with 1.14.8 and 1.17.3

  • Kubernetes Worker Nodes must be configured as physical hosts and attached to the Control Plane Node

Installing the Intel® SecL Custom Resource Definitions

Intel® SecL uses Custom Resource Definitions to add the ability to base orchestration decisions on Intel® SecL security attributes to Kubernetes. These CRDs allow Kubernetes administrators to configure pods to require specific security attributes so that the Kubernetes Control Plane Node will schedule those pods only on Worker Nodes that match the specified attributes.

Two CRDs are required for integration with Intel® SecL – an extension for the Control Plane nodes, and a scheduler extension. A single installer will deploy both of these CRDs. The extensions are deployed as a Kubernetes deployment in the isecl namespace.

Note

Please refer detail steps given for 3.15 Installing the Intel® SecL Kubernetes Extensions and Integration Hub section.

Configuring Pods to Require Intel® SecL Attributes

  1. (Optional) Verify that the worker nodes have had their Intel® SecL security attributes populated:

    kubectl get nodes --show-labels

    The output should show the Trust staus and any Asset Tags applied to all of the registered Worker Nodes.

  2. Add the following to any Pod creation files:

    spec:
  affinity:
    nodeAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        nodeSelectorTerms:
          - matchExpressions:
              - key: isecl.trusted
                operator: In
                values:
                  - "true"
              - key: isecl.TAG_Country
                operator: In
                values:
                  - CA
                  - US
              - key: isecl.TAG_Customer
                operator: In
                values:
                  - Coke
                  - Pepsi
              - key: isecl.TAG_State
                operator: In
                values:
                  - CA

The isecl.trusted key defines the requirement for a Trusted host. Only one of these keys should be used. The isecl.TAG_ keys indicate Asset Tags; if the workload should only launch on hosts with the COUNTRY=US Asset Tag, the pod should be launched with the matchExpression key isecl.TAG_COUNTRY with the value US.

All of the matchExpression definitions must be true for a given worker node to launch the pod – in the example above, the host must be attested as Trusted with Asset Tags Country=US ,Customer=Customer1 and State=CA. If the worker node has additional Asset Tags beyond the ones required, the pod will still be able to be launched on that node. However, if one of the specified Tags is missing or has a different value, that worker node will not be used for that pod.

Tainting Untrusted Worker Nodes

Optionally, the Intel® SecL Kubernetes CRDs can be configured to flag worker nodes as tainted to prevent any pods from launching on them. This restriction is applied regardless of whether the pod has a specific trust policy – if a worker node is flagged as tainted no pods will be launched on that worker.

This setting is disabled by default. To enable this setting:

  1. Edit the isecl-controller.yaml file under /opt/isecl-k8s-extensions/yamls/isecl-controller.yaml and set TAINT_UNTRUSTED_NODES=true

  2. Run

    kubectl apply -f /opt/isecl-k8s-extensions/yamls/isecl-controller.yaml

Worker nodes that attest as untrusted will be tainted with the NoExecute flag and unable to launch pods.

If a worker was previously considered tainted and the untrusted state is resolved, the Intel® SecL CRDs will remove the tainted flag and the worker will be able to launch pods again.
