Deployment

Pre-requisites

Install openssl on K8s control-plane
Ensure a docker registry is running locally or remotely.

Note

For single node microk8s deployment, a registry can be brought up by using microk8s add-ons. More details present in Microk8s documentation. This is not mandatory, if a remote registry already exists, the same can be used as well for single-node

Note

For multi-node kubeadm deployment, a docker registry needs to be setup by the user

Push all container images to docker registry. Example below

# Without TLS enabled
skopeo copy oci-archive:<oci-image-tar-name> docker://<registry-ip/hostname>:<registry-port>/<image-name>:<image-tag> --dest-tls-verify=false

# With TLS enabled
skopeo copy oci-archive:<oci-image-tar-name> docker://<registry-ip/hostname>:<registry-port>/image-name>:<image-tag>

Note

In case of microk8s deployment, when docker registry is enabled locally, the OCI container images need to be copied to the node where registry is enabled and then the above example command can be run. The same would not be required when registry is remotely installed

On each worker node with TXT/BTG enabled and registered to K8s control-plane, the following pre-req needs to be done on RHEL-8.3/Ubuntu-18.04 systems
Foundational Security
- Tboot-1.10.1 or later to be installed for non SUEFI servers. Tboot installation Details
- Only for Ubuntu-18.04, run the following commands
```
$ modprobe msr
```
Workload Security
- Container Confidentiality with CRIO runtime
- Tboot-1.10.1 or later to be installed for non SUEFI servers. Tboot installation Details
- Copy container-runtime directory to each of the physical servers
- Run the install-prereqs-crio.sh script on the physical servers from container-runtime
Note
container-runtime scripts need to be run on TXT/BTG/SUEFI enabled services
- Reboot the server
- Only for Ubuntu-18.04, run the following command
```
$ modprobe msr
```

Deploy

Single-Node

Pre-requisites

Setup

microk8s being the default supported single node K8s distribution, users would need to install microk8s on a Physical server
Copy all manifests and OCI container images as required to KK8s control-plane
Ensure docker registry is running locally or remotely
The K8s cluster admin should configure the existing bare metal worker nodes or register fresh bare metal worker nodes with labels. For example, a label like node.type: TXT-ENABLED or node.type: SUEFI-ENABLED respectively for TXT/SUEFI enabled servers can be used by the cluster admin to distinguish the baremetal worker node and the same label can be used in ISECL Agent pod configuration to schedule on all worker nodes marked with the label. The same label is being used as default in the K8s manifests. This can be edited in k8s/manifests/ta/daemonset.yml , k8s/manifests/wla/daemonset.yml

Refer Section in appendix for Feature Detection - node.type: TXT-ENABLED should be labeled for nodes installed with tboot, where event logs will be collected from tboot measurements. - node.type: SUEFI-ENABLED should be labeled for nodes with SUEFI enabled, where event logs will be efi logs.

#Label node for TXT
kubectl label node <node-name> node.type=TXT-ENABLED

#Label node for SUEFI
kubectl label node <node-name> node.type=SUEFI-ENABLED

In case of microk8s cluster, the --allow-privileged=true flag needs to be added to the kube-apiserver under /var/snap/microk8s/current/args/kube-apiserver and restart kube-apiserver with systemctl restart snap.microk8s.daemon-apiserver to allow running of privileged containers like TRUST-AGENT and WORKLOAD-AGENT
Ensure a backend KMIP-2.0 compliant server like pykmip is up and running.

Manifests

Update all the K8s manifests with the image names to be pulled from the registry
The tolerations and node-affinity in case of isecl-scheduler and isecl-controller needs to be updated in the respective manifests under the manifests/k8s-extensions-controller and manifests/k8s-extensions-scheduler directories to microk8s.io/cluster based on k8s distributions of kubeadm and microk8s respectively

Deploy steps

The bootstrap script would facilitate the deployment of all FS,WS components at a use case level. Sample one given below.

Update `isecl-k8s.env` file

#Kubernetes Distribution - microk8s
K8S_DISTRIBUTION=microk8s
K8S_CONTROL_PLANE_IP=
K8S_CONTROL_PLANE_HOSTNAME=

# cms
CMS_BASE_URL=https://cms-svc.isecl.svc.cluster.local:8445/cms/v1
CMS_SAN_LIST=cms-svc.isecl.svc.cluster.local,<K8s control-plane IP/K8s control-plane Hostname>
CMS_K8S_ENDPOINT_URL=https://<k8s control-plane IP>:30445/cms/v1

# authservice
AAS_API_URL=https://aas-svc.isecl.svc.cluster.local:8444/aas/v1
AAS_API_CLUSTER_ENDPOINT_URL=https://<K8s control-plane IP>:30444/aas/v1
AAS_ADMIN_USERNAME=admin@aas
AAS_ADMIN_PASSWORD=aasAdminPass
AAS_DB_USERNAME=aasdbuser
AAS_DB_PASSWORD=aasdbpassword
AAS_DB_HOSTNAME=aasdb-svc.isecl.svc.cluster.local
AAS_DB_PORT="5432"
AAS_DB_NAME=aasdb
AAS_DB_SSLMODE=verify-full
AAS_SAN_LIST=aas-svc.isecl.svc.cluster.local,<K8s control-plane IP/K8s control-plane Hostname>
#NATS_ACCOUNT_NAME=ISecL-account

# Workload Service
WLS_SERVICE_USERNAME=admin@wls
WLS_SERVICE_PASSWORD=wlsAdminPass
WLS_DB_USERNAME=wlsdbuser
WLS_DB_PASSWORD=wlsdbpassword
WLS_DB_HOSTNAME=wlsdb-svc.isecl.svc.cluster.local
WLS_DB_NAME=wlsdb
WLS_DB_PORT="5432"
WLS_API_URL=https://wls-svc.isecl.svc.cluster.local:5000/wls/v1
WLS_CERT_SAN_LIST=wls-svc.isecl.svc.cluster.local

# Host Verification Service
HVS_SERVICE_USERNAME=admin@hvs
HVS_SERVICE_PASSWORD=hvsAdminPass
HVS_DB_USERNAME=hvsdbuser
HVS_DB_PASSWORD=hvsdbpassword
HVS_DB_HOSTNAME=hvsdb-svc.isecl.svc.cluster.local
HVS_DB_NAME=hvsdb
HVS_CERT_SAN_LIST=hvs-svc.isecl.svc.cluster.local,<K8s control-plane IP/K8s control-plane Hostname>
HVS_DB_PORT="5432"
HVS_URL=https://hvs-svc.isecl.svc.cluster.local:8443/hvs/v2/

#Nats Servers configuration for TA and HVS
#NATS_SERVERS=nats://<K8s control-plane IP/Hostname>:30222

# ihub bootstrap
IHUB_SERVICE_USERNAME=admin@hub
IHUB_SERVICE_PASSWORD=hubAdminPass
IH_CERT_SAN_LIST=ihub-svc.isecl.svc.cluster.local,<K8s control-plane IP/K8s control-plane Hostname>
# For microk8s
# K8S_API_SERVER_CERT=/var/snap/microk8s/current/certs/server.crt
K8S_API_SERVER_CERT=/var/snap/microk8s/current/certs/server.crt
# This is valid for multinode deployment, should be populated once ihub is deployed successfully
IHUB_PUB_KEY_PATH=
HVS_BASE_URL=https://hvs-svc.isecl.svc.cluster.local:8443/hvs/v2

# TrustAgent
# e.g TA_CERT_SAN_LIST=*.example.com,192.168.1.*
TA_CERT_SAN_LIST=
TPM_OWNER_SECRET=

# Workload Agent
WLA_SERVICE_USERNAME=wlauser@wls
WLA_SERVICE_PASSWORD=wlaAdminPass

# KBS
ENDPOINT_URL=https://kbs-svc.isecl.svc.cluster.local:9443/v1
KBS_CERT_SAN_LIST=kbs-svc.isecl.svc.cluster.local,<K8s control-plane IP>,<K8s control-plane Hostname>
KMIP_HOSTNAME=<KMIP IP/Hostname>
KMIP_SERVER_IP=
KMIP_SERVER_PORT=
# Retrieve the following KMIP server’s client certificate, client key and root ca certificate from the KMIP server.
# This key and certificates will be available in KMIP server, /etc/pykmip is the default path copy them to this system manifests/kbs/kmip-secrets path
KMIP_CLIENT_CERT_NAME=client_certificate.pem
KMIP_CLIENT_KEY_NAME=client_key.pem
KMIP_ROOT_CERT_NAME=root_certificate.pem

# ISecl Scheduler
# For microk8s
# K8S_CA_KEY=/var/snap/microk8s/current/certs/ca.key
# K8S_CA_CERT=/var/snap/microk8s/current/certs/ca.crt
K8S_CA_KEY=/var/snap/microk8s/current/certs/ca.key
K8S_CA_CERT=/var/snap/microk8s/current/certs/ca.crt

# populate users.env
ISECL_INSTALL_COMPONENTS="AAS,HVS,WLS,IHUB,KBS,WLA,TA,WPM"

#NATS_CERT_SAN_LIST=
#NATS_TLS_COMMON_NAME=

GLOBAL_ADMIN_USERNAME=
GLOBAL_ADMIN_PASSWORD=

INSTALL_ADMIN_USERNAME=
INSTALL_ADMIN_PASSWORD=

WPM_SERVICE_USERNAME=
WPM_SERVICE_PASSWORD=

CUSTOM_CLAIMS_COMPONENTS=
CCC_ADMIN_USERNAME=
CCC_ADMIN_PASSWORD=

Note

Ensure to update KMIP_CLIENT_CERT_NAME, KMIP_CLIENT_KEY_NAME, KMIP_ROOT_CERT_NAME in the env from /etc/pykmip of pykmip by copying the key and certs to this system under manifests/kbs/kmip-secrets path

Run scripts on K8s control-plane

The bootstrap scripts are sample scripts to allow for a quick start of FS,WS services and agents. Users are free to modify the script or directly use the K8s manifests as per their deployment model requirements

#Pre-reqs.sh
./pre-requisites.sh

#isecl-bootstrap-db-services
#Reference
#Usage: ./isecl-bootstrap-db-services.sh [-help/up/purge]
#    -help          print help and exit
#    up        Bootstrap Database Services for Authservice, Workload Service and Host #verification Service
#    purge     Delete Database Services for Authservice, Workload Service and Host #verification Service

./isecl-bootstrap-db-services.sh up

#isecl-bootstrap
#Reference
#Usage: ./isecl-bootstrap.sh [-help/up/down/purge]
#    -help                                     Print help and exit
#    up   [all/<agent>/<service>/<usecase>]    Bootstrap ISecL K8s environment for #specified agent/service/usecase
#    down [all/<agent>/<service>/<usecase>]    Delete ISecL K8s environment for specified #agent/service/usecase [will not delete data, config, logs]
#    purge                                     Delete ISecL K8s environment with data, #config, logs [only supported for single node deployments]

#    Available Options for up/down command:
#        agent      Can be one of tagent, wlagent
#        service    Can be one of cms, authservice, hvs, ihub, wls, kbs, isecl-#controller, isecl-scheduler
#        usecase    Can be one of foundational-security, workload-security, isecl-#orchestration-k8s, csp, enterprise

./isecl-bootstrap.sh up <all/usecase of choice>

Note

An error to create asymmetric key would mean the following line, RANDFILE = $ENV::HOME/.rnd needs to be commented under /etc/ssl/openssl.cnf

Update the IHUB_PUB_KEY_PATH in isecl-k8s.env to /etc/ihub/ihub_public_key.pem
Bring up isecl-scheduler

./isecl-bootstrap.sh up isecl-scheduler

Copy scheduler-policy.json

mkdir -p /opt/isecl-k8s-extensions
cp manifests/k8s-extensions-scheduler/config/scheduler-policy.json /opt/isecl-k8s-extensions/

Edit kube-scheduler and restart kubelet

#Edit the kube-scheduler
vi /var/snap/microk8s/current/args/kube-scheduler

#Add the below line
--policy-config-file=/opt/isecl-k8s-extensions/scheduler-policy.json

#Restart kubelet
systemctl restart snap.microk8s.daemon-kubelet.service

Multi-Node

Pre-requisites

Setup

kubeadm being the default supported multi-node K8s distribution, users would need to install a kubeadm K8s control-plane node setup
Copy all manifests and OCI container images as required to K8s control-plane
Ensure images are pushed to registry locally or remotely
The K8s cluster admin should configure the existing bare metal worker nodes or register fresh bare metal worker nodes with labels. For example, a label like node.type: TXT-ENABLED or node.type: SUEFI-ENABLED respectively for TXT/SUEFI enabled servers can be used by the cluster admin to distinguish the baremetal worker node and the same label can be used in ISECL Agent pod configuration to schedule on all worker nodes marked with the label. The same label is being used as default in the K8s manifests. This can be edited in k8s/manifests/ta/daemonset.yml , k8s/manifests/wla/daemonset.yml

Refer Section in appendix for Feature Detection - node.type: TXT-ENABLED should be used for nodes with tboot installed, where event logs will be collected from tboot measurements. - node.type: SUEFI-ENABLED should be used for nodes with SUEFI enabled, where event logs will be EFI logs.

#Label node for TXT
kubectl label node <node-name> node.type=TXT-ENABLED

#Label node for SUEFI
kubectl label node <node-name> node.type=SUEFI-ENABLED

NFS storage class is used in kubernetes environment for data persistence and supported in ISecL FS/WS usecases. User needs to setup NFS server and create directory structure along with granting permission for a given user id. From security point of view, its been recommended to create a separate user id and grant the permission for all isecl directories for this user id. Below are some samples for reference

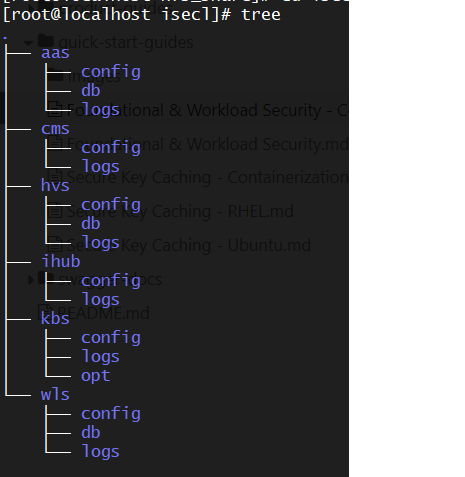

Snapshot showing directory structure for which user needs to create on NFS volumes manually or using custom scripts.

NFS Directory Structure FS/WS Usecase

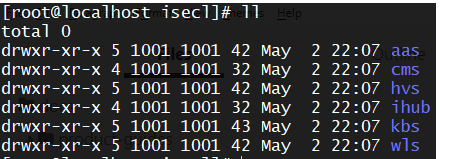

Snapshot showing ownership and permissions for directories for which user needs to manually grant the ownership.

NFS Directory Permissions FS/WS Usecase

Snapshot for configuring PV and PVC , user need to provide the NFS server IP or hostname and paths for each of the service directories. Sample manifest for creating config-pv for cms service

---
apiVersion: v1
kind: PersistentVolume
metadata:
    name: cms-config-pv
spec:
    capacity:
    storage: 128Mi
    volumeMode: Filesystem
    accessModes:
    - ReadWriteMany
    persistentVolumeReclaimPolicy: Retain
    storageClassName: nfs
    nfs:
    path: /<NFS-vol-base-path>/isecl/cms/config
    server: <NFS Server IP/Hostname>

Sample manifest for creating config-pvc for cms service

---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: cms-config-pvc
  namespace: isecl
spec:
  storageClassName: nfs
  accessModes:
  - ReadWriteMany
  resources:
  requests:
      storage: 128Mi

Note

The user id specified in security context in deployment.yml for a given service and owner of the service related directories in NFS must be same

Ensure a backend KMIP-2.0 compliant server like pykmip is up and running.

Manifests

Update all the K8s manifests with the image names to be pulled from the registry
The tolerations and node-affinity in case of isecl-scheduler and isecl-controller needs to be updated in the respective manifests under the manifests/k8s-extensions-controller and manifests/k8s-extensions-scheduler directories to node-role.kubernetes.io/master
All NFS PV yaml files needs to be updated with the path: /<NFS-vol-path> and server: <NFS Server IP/Hostname> under each service manifest file for config, logs , db-data

Deploy steps

Update `isecl-k8s.env` file

#Kubernetes Distribution - kubeadm
K8S_DISTRIBUTION=kubeadm
K8S_CONTROL_PLANE_IP=
K8S_CONTROL_PLANE_HOSTNAME=

# cms
CMS_BASE_URL=https://cms-svc.isecl.svc.cluster.local:8445/cms/v1
CMS_SAN_LIST=cms-svc.isecl.svc.cluster.local,<K8s control-plane IP/K8s control-plane Hostname>
CMS_K8S_ENDPOINT_URL=https://<k8s control-plane IP>:30445/cms/v1

# authservice
AAS_API_URL=https://aas-svc.isecl.svc.cluster.local:8444/aas/v1
AAS_API_CLUSTER_ENDPOINT_URL=https://<K8s control-plane IP>:30444/aas/v1
AAS_ADMIN_USERNAME=admin@aas
AAS_ADMIN_PASSWORD=aasAdminPass
AAS_DB_USERNAME=aasdbuser
AAS_DB_PASSWORD=aasdbpassword
AAS_DB_HOSTNAME=aasdb-svc.isecl.svc.cluster.local
AAS_DB_PORT="5432"
AAS_DB_NAME=aasdb
AAS_DB_SSLMODE=verify-full
AAS_SAN_LIST=aas-svc.isecl.svc.cluster.local,<K8s control-plane IP/K8s control-plane Hostname>
#NATS_ACCOUNT_NAME=ISecL-account

# Workload Service
WLS_SERVICE_USERNAME=admin@wls
WLS_SERVICE_PASSWORD=wlsAdminPass
WLS_DB_USERNAME=wlsdbuser
WLS_DB_PASSWORD=wlsdbpassword
WLS_DB_HOSTNAME=wlsdb-svc.isecl.svc.cluster.local
WLS_DB_NAME=wlsdb
WLS_DB_PORT="5432"
WLS_API_URL=https://wls-svc.isecl.svc.cluster.local:5000/wls/v1
WLS_CERT_SAN_LIST=wls-svc.isecl.svc.cluster.local

# Host Verification Service
HVS_SERVICE_USERNAME=admin@hvs
HVS_SERVICE_PASSWORD=hvsAdminPass
HVS_DB_USERNAME=hvsdbuser
HVS_DB_PASSWORD=hvsdbpassword
HVS_DB_HOSTNAME=hvsdb-svc.isecl.svc.cluster.local
HVS_DB_NAME=hvsdb
HVS_CERT_SAN_LIST=hvs-svc.isecl.svc.cluster.local,<K8s control-plane IP/K8s control-plane Hostname>
HVS_DB_PORT="5432"
HVS_URL=https://hvs-svc.isecl.svc.cluster.local:8443/hvs/v2/

#Nats Servers configuration for TA and HVS
#NATS_SERVERS=nats://<K8s control-plane IP/Hostname>:30222

# ihub bootstrap
IHUB_SERVICE_USERNAME=admin@hub
IHUB_SERVICE_PASSWORD=hubAdminPass
IH_CERT_SAN_LIST=ihub-svc.isecl.svc.cluster.local,<K8s control-plane IP/K8s control-plane Hostname>
# For Kubeadm
# K8S_API_SERVER_CERT=/etc/kubernetes/pki/apiserver.crt
K8S_API_SERVER_CERT=/etc/kubernetes/pki/apiserver.crt
# This is valid for multinode deployment, should be populated once ihub is deployed successfully
IHUB_PUB_KEY_PATH=
HVS_BASE_URL=https://hvs-svc.isecl.svc.cluster.local:8443/hvs/v2

# TrustAgent
# e.g TA_CERT_SAN_LIST=*.example.com,192.168.1.*
TA_CERT_SAN_LIST=
TPM_OWNER_SECRET=

# Workload Agent
WLA_SERVICE_USERNAME=wlauser@wls
WLA_SERVICE_PASSWORD=wlaAdminPass

# KBS
ENDPOINT_URL=https://kbs-svc.isecl.svc.cluster.local:9443/v1
KBS_CERT_SAN_LIST=kbs-svc.isecl.svc.cluster.local,<K8s control-plane IP>,<K8s control-plane Hostname>
KMIP_HOSTNAME=<KMIP IP/Hostname>
KMIP_SERVER_IP=
KMIP_SERVER_PORT=
# Retrieve the following KMIP server’s client certificate, client key and root ca certificate from the KMIP server.
# This key and certificates will be available in KMIP server, /etc/pykmip is the default path copy them to this system manifests/kbs/kmip-secrets path
KMIP_CLIENT_CERT_NAME=client_certificate.pem
KMIP_CLIENT_KEY_NAME=client_key.pem
KMIP_ROOT_CERT_NAME=root_certificate.pem

# ISecl Scheduler
# For Kubeadm
# K8S_CA_KEY=/etc/kubernetes/pki/ca.key
# K8S_CA_CERT=/etc/kubernetes/pki/ca.crt
K8S_CA_KEY=/etc/kubernetes/pki/ca.key
K8S_CA_CERT=/etc/kubernetes/pki/ca.crt

# populate users.env
ISECL_INSTALL_COMPONENTS="AAS,HVS,WLS,IHUB,KBS,WLA,TA,WPM"

#NATS_CERT_SAN_LIST=
#NATS_TLS_COMMON_NAME=

GLOBAL_ADMIN_USERNAME=
GLOBAL_ADMIN_PASSWORD=

INSTALL_ADMIN_USERNAME=
INSTALL_ADMIN_PASSWORD=

WPM_SERVICE_USERNAME=
WPM_SERVICE_PASSWORD=

CUSTOM_CLAIMS_COMPONENTS=
CCC_ADMIN_USERNAME=
CCC_ADMIN_PASSWORD=

Note

Ensure to update KMIP_CLIENT_CERT_NAME, KMIP_CLIENT_KEY_NAME, KMIP_ROOT_CERT_NAME in the env from /etc/pykmip of pykmip by copying the key and certs to this system under manifests/kbs/kmip-secrets path

Run scripts on K8s control-plane

The bootstrap scripts are sample scripts to allow for a quick start of FS,WS services and agents. Users are free to modify the script or directly use the K8s manifests as per their deployment model requirements

#Pre-reqs.sh
./pre-requisites.sh

#isecl-bootstrap-db-services
#Reference
#Usage: ./isecl-bootstrap-db-services.sh [-help/up/purge]
#    -help          print help and exit
#    up        Bootstrap Database Services for Authservice, Workload Service and Host verification Service
#    purge     Delete Database Services for Authservice, Workload Service and Host verification Service

./isecl-bootstrap-db-services.sh up

#isecl-bootstrap
#Reference
#Usage: ./isecl-bootstrap.sh [-help/up/down/purge]
#    -help                                     Print help and exit
#    up   [all/<agent>/<service>/<usecase>]    Bootstrap ISecL K8s environment for #specified agent/service/usecase
#    down [all/<agent>/<service>/<usecase>]    Delete ISecL K8s environment for specified #agent/service/usecase [will not delete data, config, logs]
#    purge                                     Delete ISecL K8s environment with data, config, logs [only supported for single node deployments]

#    Available Options for up/down command:
#        agent      Can be one of tagent, wlagent
#        service    Can be one of cms, authservice, hvs, ihub, wls, kbs, isecl-#controller, isecl-scheduler
#        usecase    Can be one of foundational-security, workload-security, isecl-#orchestration-k8s, csp, enterprise

./isecl-bootstrap.sh up <all/usecase of choice>

Note

An error to create asymmetric key would mean the following line, RANDFILE = $ENV::HOME/.rnd needs to be commented under /etc/ssl/openssl.cnf

Copy the ihub_public_key.pem from NFS path -<mnt>/isecl/ihub/config/ihub_public_key.pem to K8s control-plane
Update the isecl-k8s.env for IHUB_PUB_KEY_PATH
Bring up the isecl-k8s-scheduler

./isecl-bootstrap.sh up isecl-scheduler

Create and update scheduler-policy.json path

mkdir -p /opt/isecl-k8s-extensions
cp manifests/k8s-extensions-scheduler/config/scheduler-policy.json /opt/isecl-k8s-extensions

Configure kube-scheduler to establish communication with isecl-scheduler. Add scheduler-policy.json under kube-scheduler section, mountPath under container section and hostPath under volumes section in /etc/kubernetes/manifests/kube-scheduler.yaml as mentioned below

spec:
  containers:
  - command:
    - kube-scheduler
    - --policy-config-file=/opt/isecl-k8s-extensions/scheduler-policy.json

containers:
    volumeMounts:
    - mountPath: /opt/isecl-k8s-extensions/
      name: extendedsched
      readOnly: true

volumes:
  - hostPath:
      path: /opt/isecl-k8s-extensions/
      type:
    name: extendedsched

Note

Make sure to use proper indentation and don't delete existing mountPath and hostPath sections in kube-scheduler.yaml

Restart kubelet which restart all the k8s services including kube-scheduler

systemctl restart kubelet

Deployment

Pre-requisites

Deploy

Single-Node

Pre-requisites

Setup

Manifests

Deploy steps

Update isecl-k8s.env file

Run scripts on K8s control-plane

Multi-Node

Pre-requisites

Setup

Manifests

Deploy steps

Update isecl-k8s.env file

Run scripts on K8s control-plane

Update `isecl-k8s.env` file

Update `isecl-k8s.env` file
